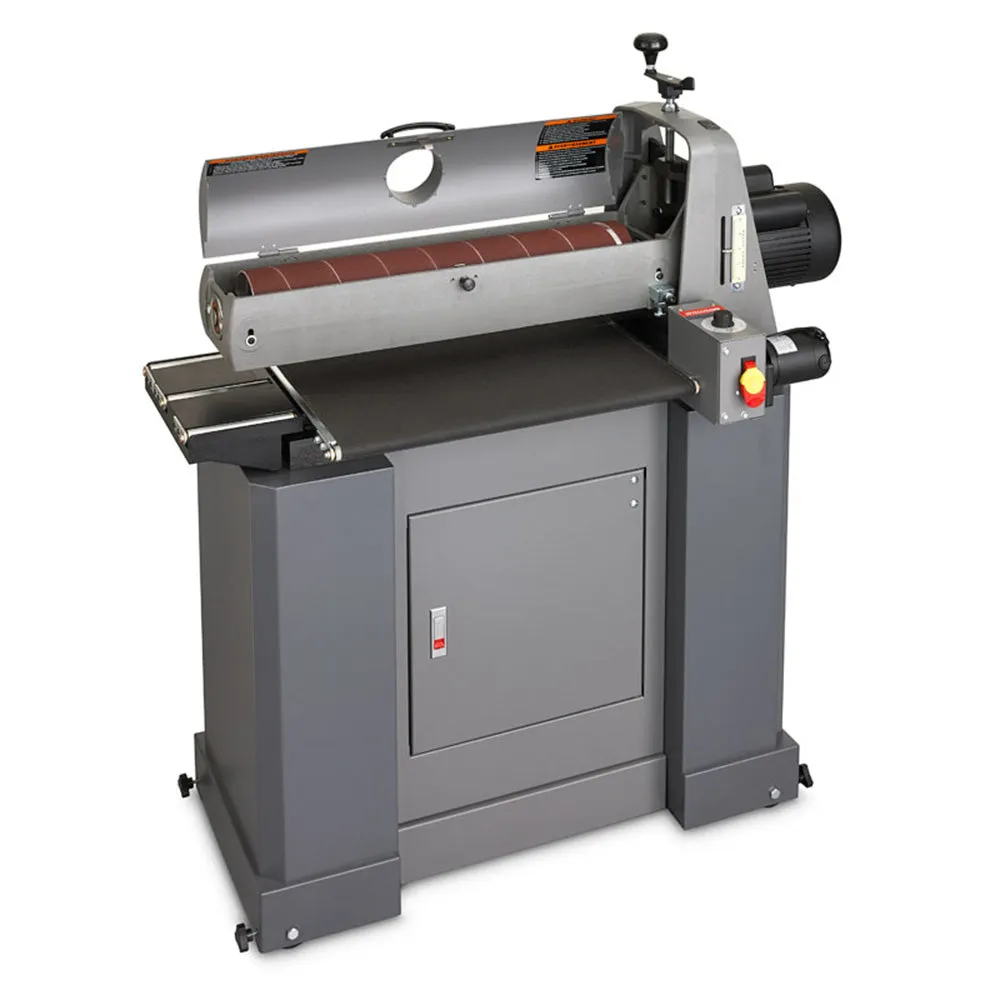

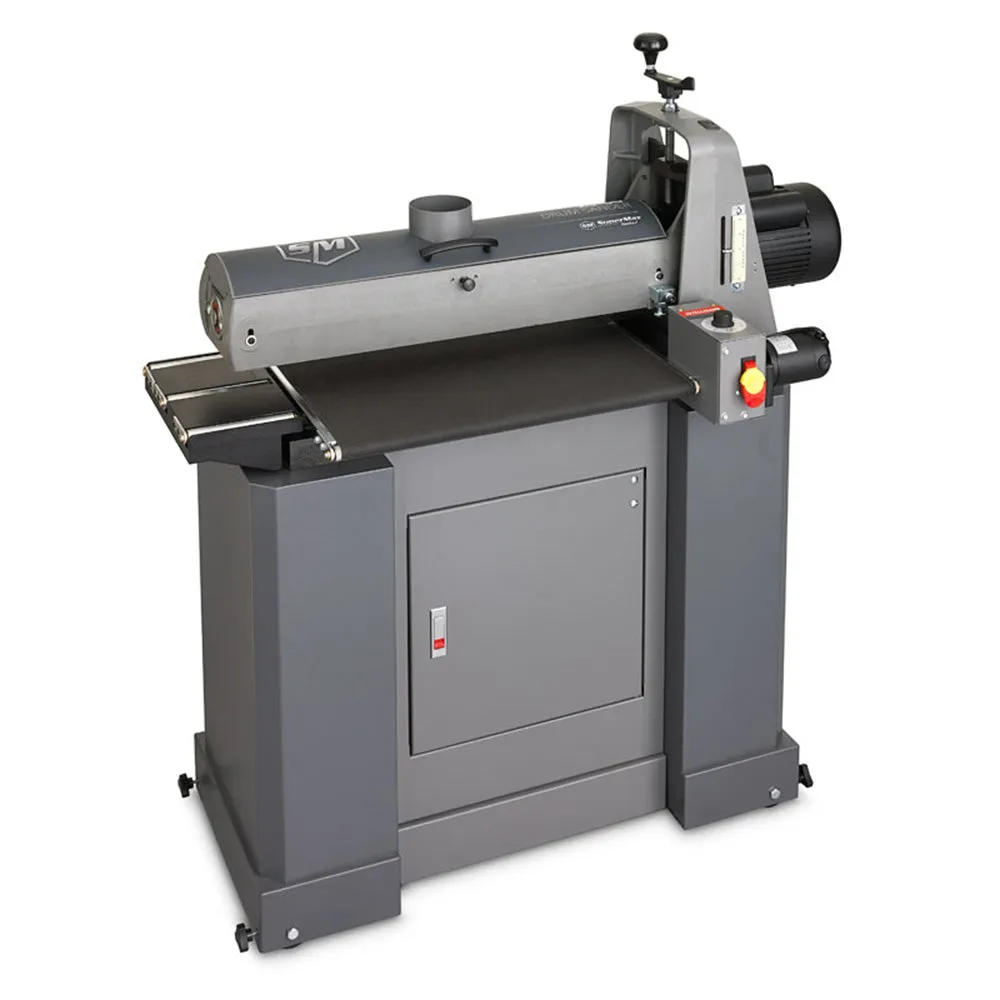

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50” in a double pass. Expand the scope of projects you’re able to complete while increasing speed and consistency in which you’re able to do them! The 25-50 Drum Sander comes standard on the Closed Mobile Base Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.
[TABS]
Features
- 25" sanding in a single pass, 50" in a double pass
- INTELLISAND Technology automatically adjusts conveyor speed if required and also prevents gouging stock or damage to the motors
- Fast Adjust Lever offers an extremely quick and accurate adjustment for proper alignment when sanding material wider than the drum

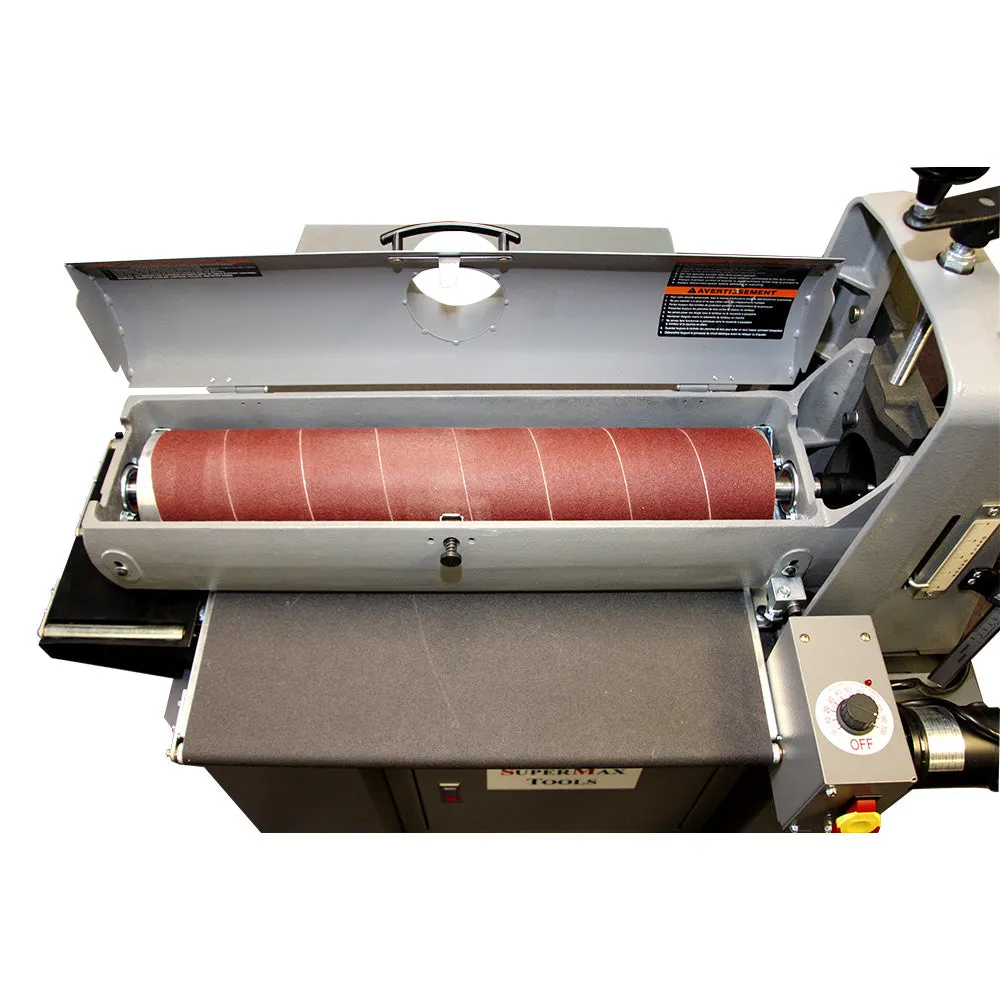

- More room for easy access to abrasives- no special tool needed
- Self-cooling drum prevents overheating and extends abrasive life
- Tension rollers are adjustable for pressure and contact, preventing snipe and maintaining proper feeding of material
- Closed stand has built-in wheels and storage
- Mobile base helps stand and machine to move with ease
Specs
Max. Sanding Width: 50″ (Two Passes)
Min. Sanding Length: 2-1/4″
Max. Sanding Thickness: 4″
Min. Sanding Thickness: 1/32″

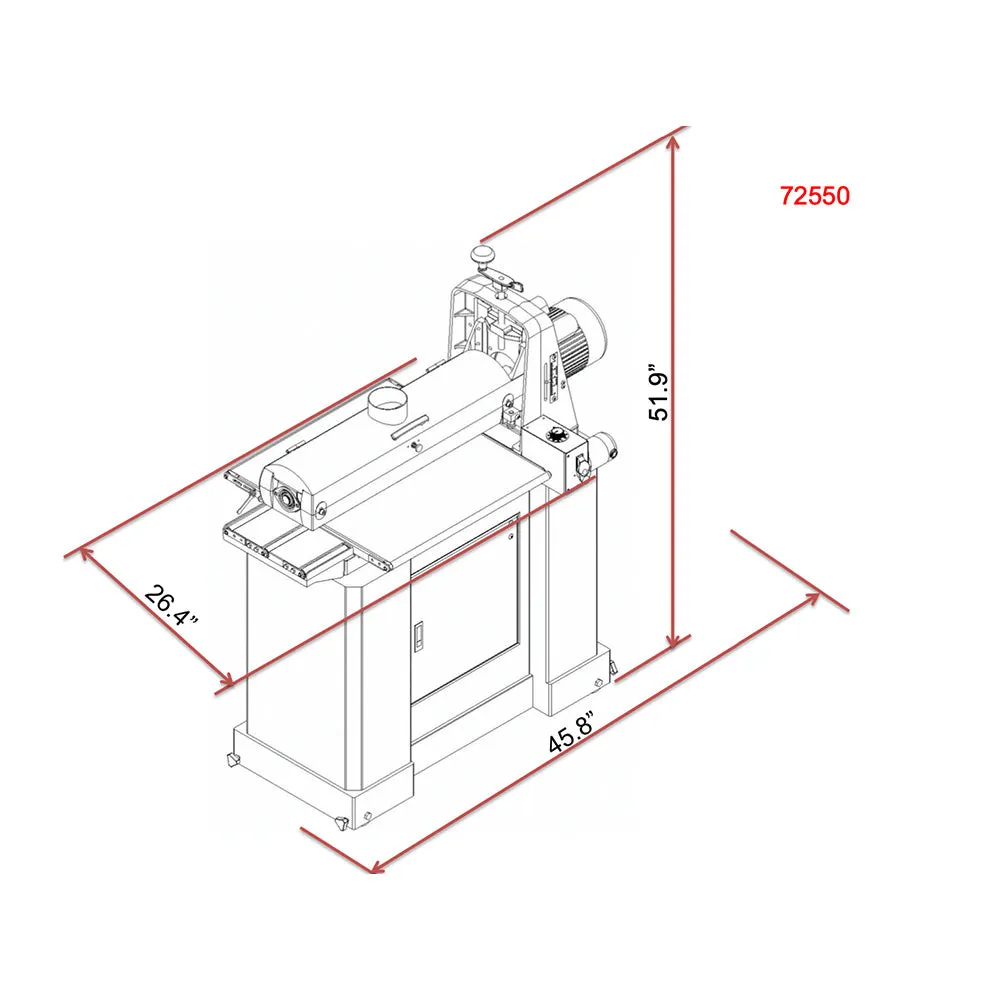

Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)
Drum: 5″ x 25″ Extruded Aluminum
Drum Speed: 1,740 RPM
Drum Speed: 1,740 RPM
Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended
Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM
Drive Motor (TEFC): 1-3/4hp
Power Requirements: 110 V 20 amp
Table Height (Floor To Top Of Table): 33″
Shipping Weight: 369 lbs. (3 boxes including stand)
Shipping Dimensions (L x W x H): 45″ x 16″ x 24″
