Product Details

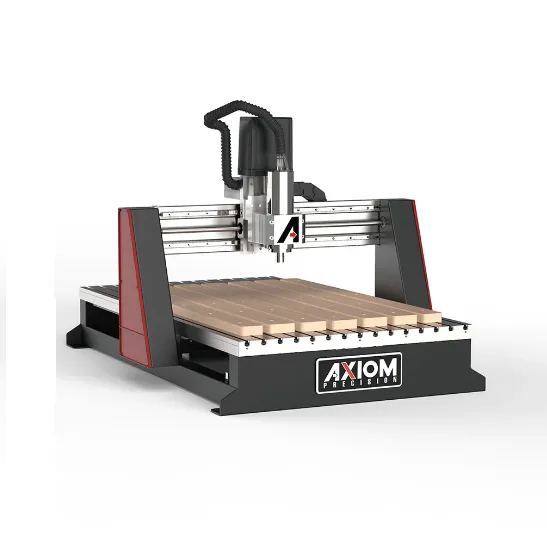

The new Axiom Precision AutoRoute PROV5 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.

The new PRO also has a fresh new look.

These new Axiom CNC machines are now stronger, faster, and easier to maintain than ever before.

The updated PRO series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.

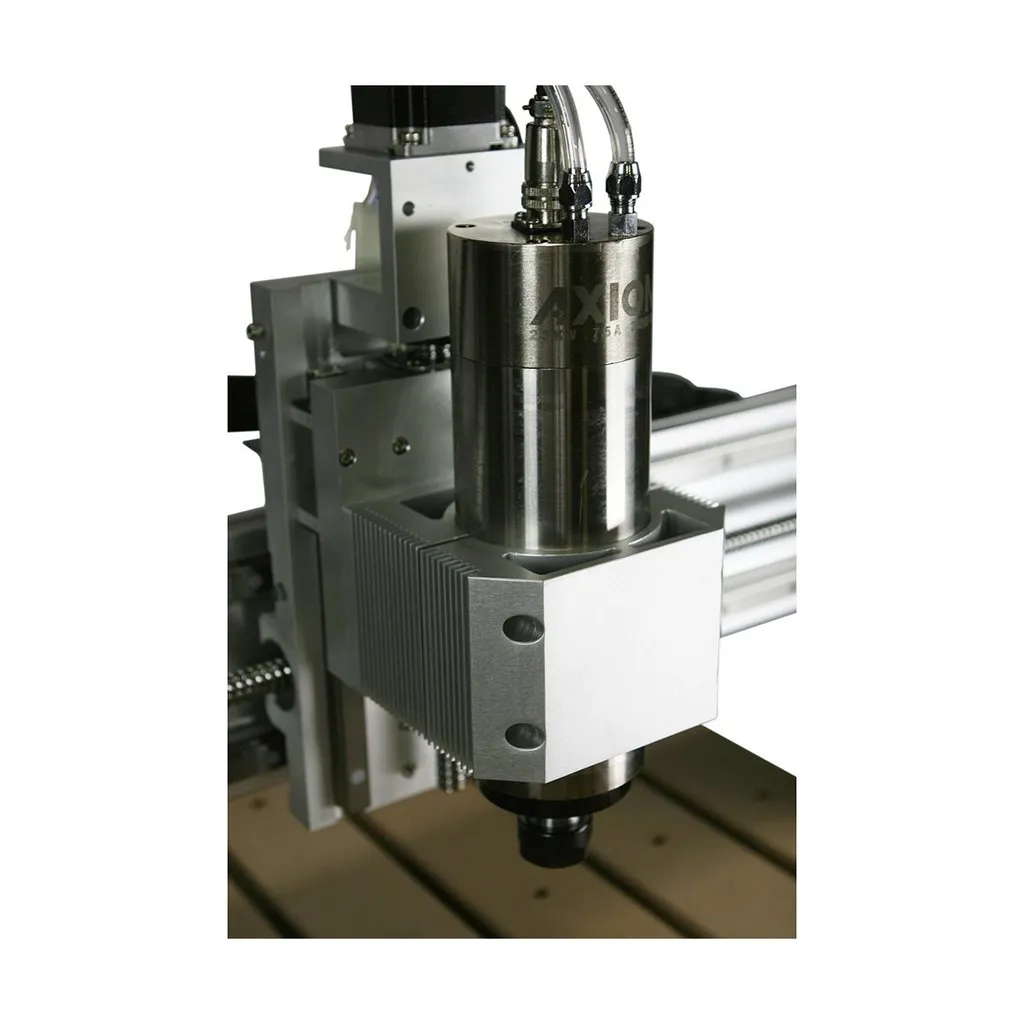

Our PRO series CNC routers provide a full 6.5'' of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.

Each PRO series machine is also prewired to accept our optional Rotary Kit.

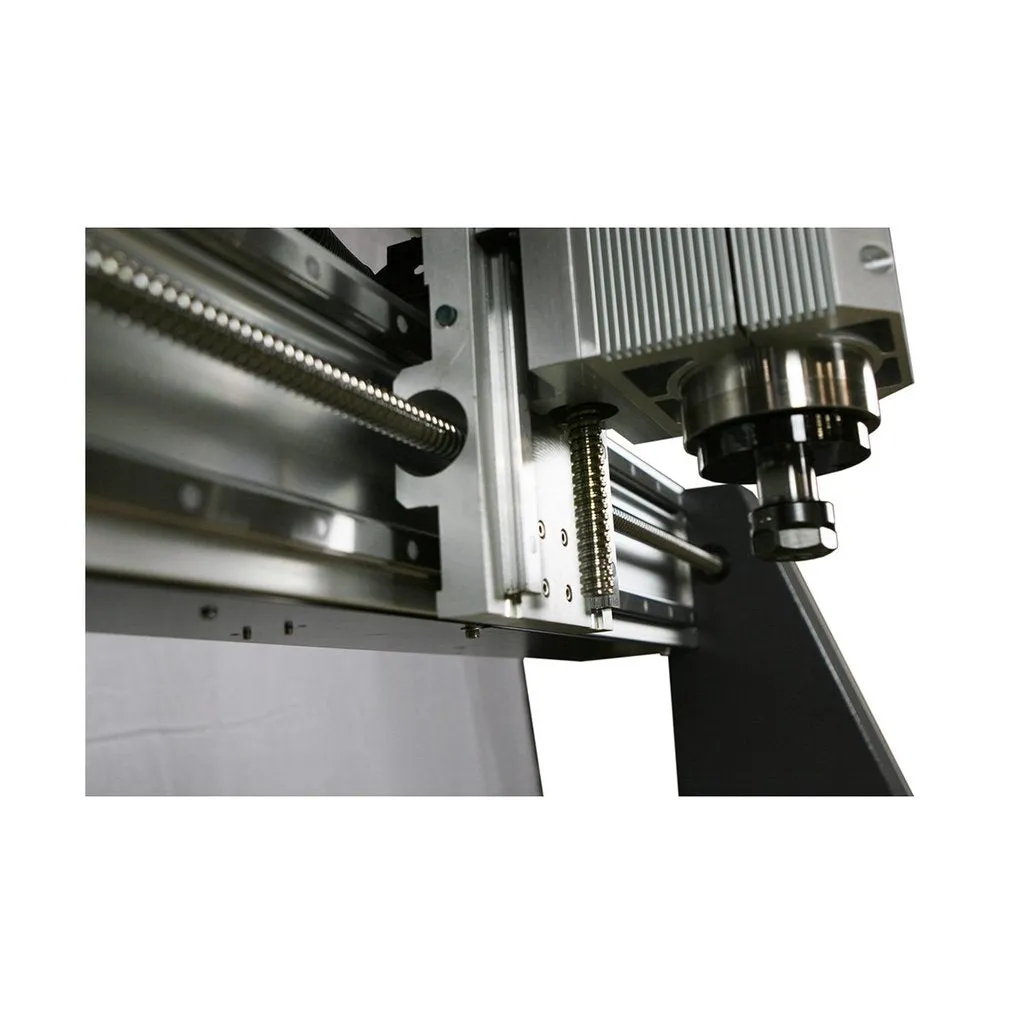

The Axiom AutoRoute PRO Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.

In addition, the integrated MDF spoil boards provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle.

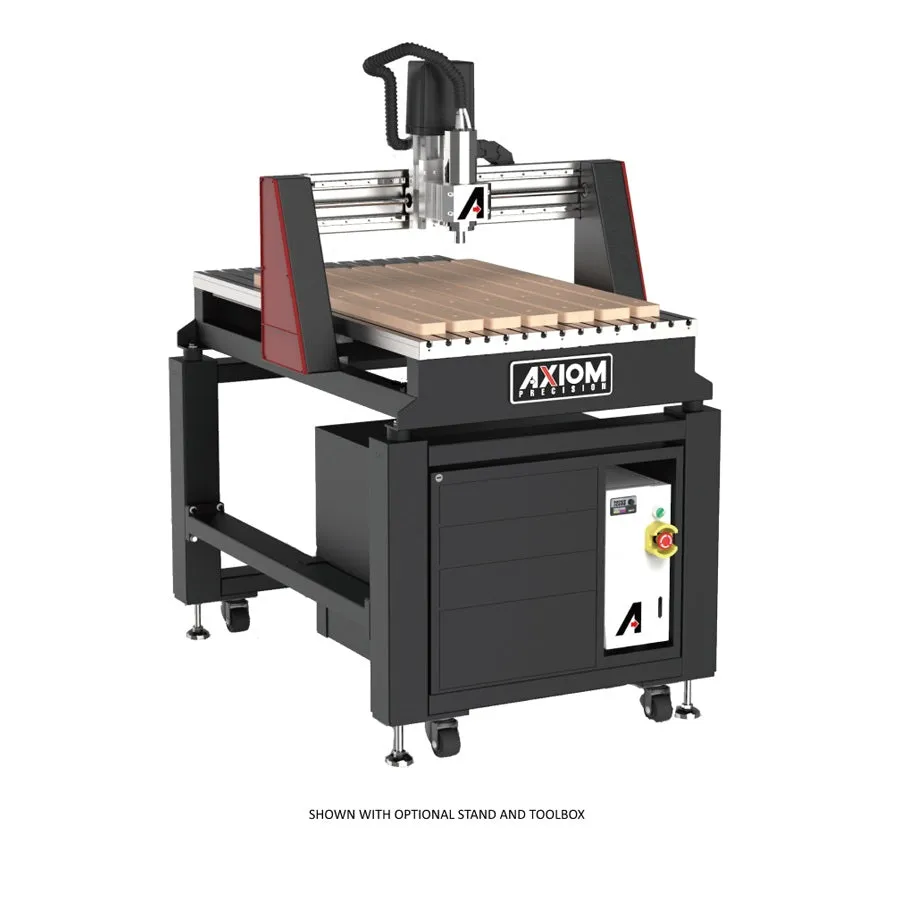

  • Optional Stand and Tool Box available

Please allow 1-2 weeks delivery - Flat Rate of $495 for Shipping!!

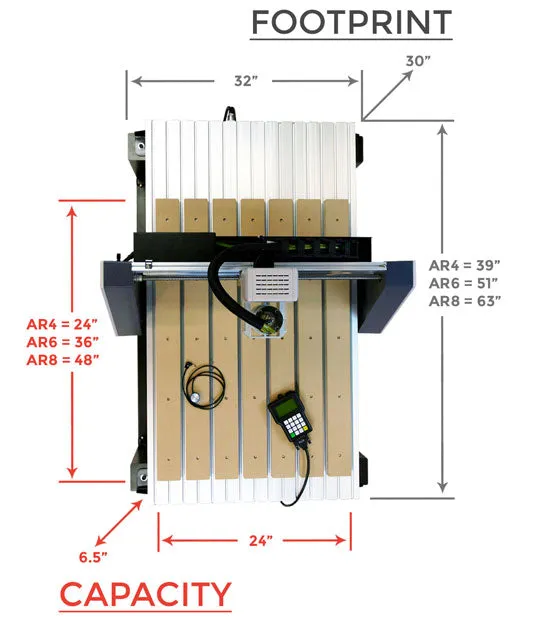

X axis travel 24" (610mm)
Y axis travel AR6 = 36" (910mm)
Z axis travel 6" (153mm)
C axis travel 360deg
Table work area AR6 = 28.4" x 51"
Spindle Configuration ER20
Included Collets 1/4" & 1/2"
Electro Spindle 2.2KW
Spindle speed 0~24000 RPM
Rapid feed rate 200 IPM (5 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Positional Accuracy /- .00393" (0.10mm)
Power requirements 220 V,50~60 Hz, 10A, 1-Phase
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum alloy gravity cast
Gantry Clearance 6.5" (165.1mm)
Machine Base All Welded Steel
Frame Machine Dimensions AR6 = 51.18"L x 37.36"W x 30.27"H
Shipping Dimensions AR6 = 53"L x 39"W x 33"H
Shipping Weight AR6 = 360 lbs

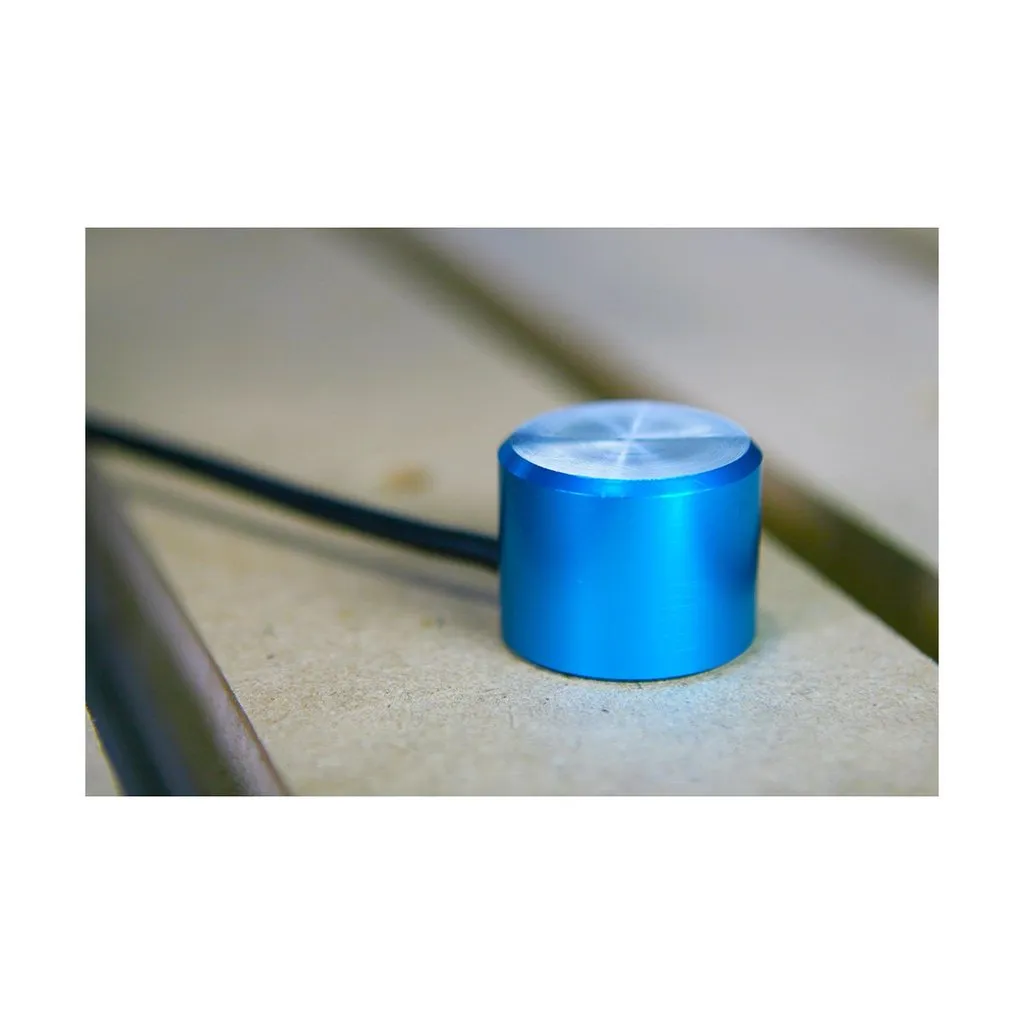

Tool Touch-Off Device Included
Onboard Cooling System Included

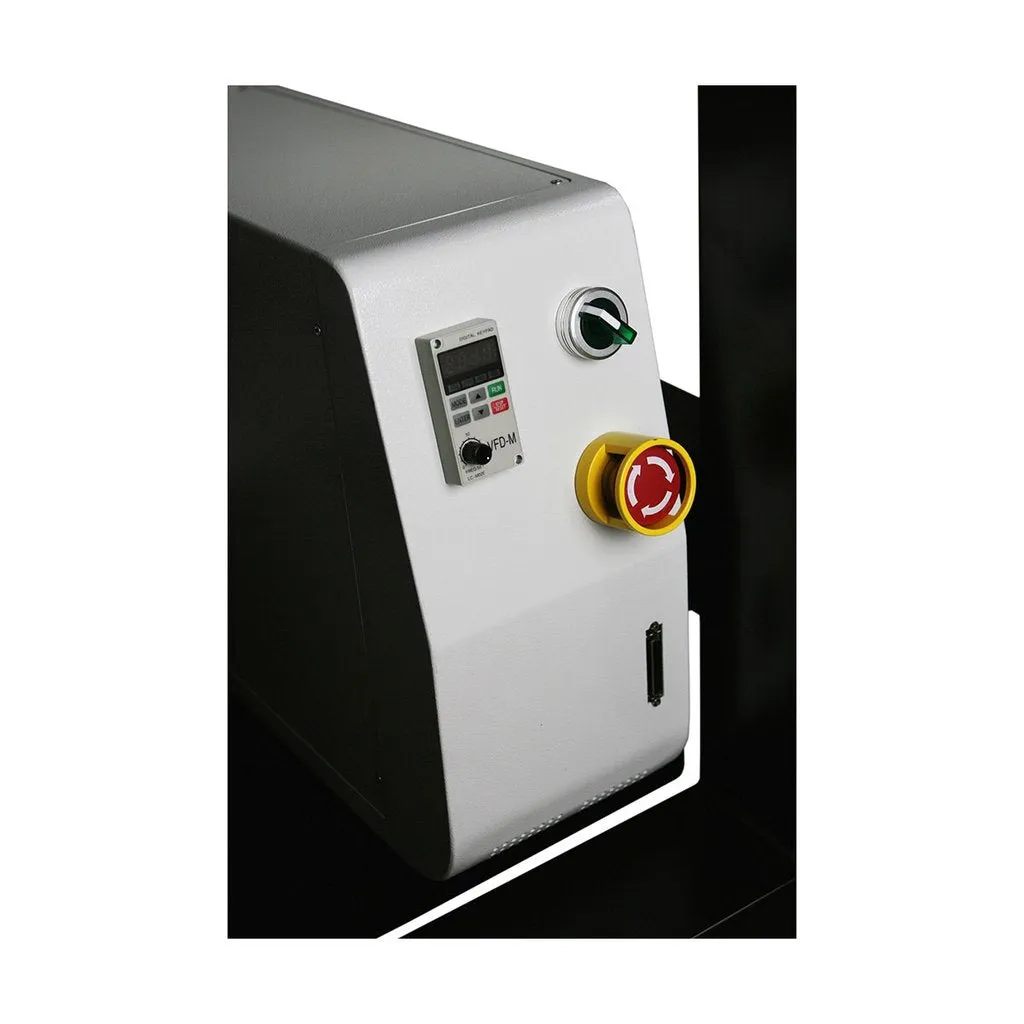

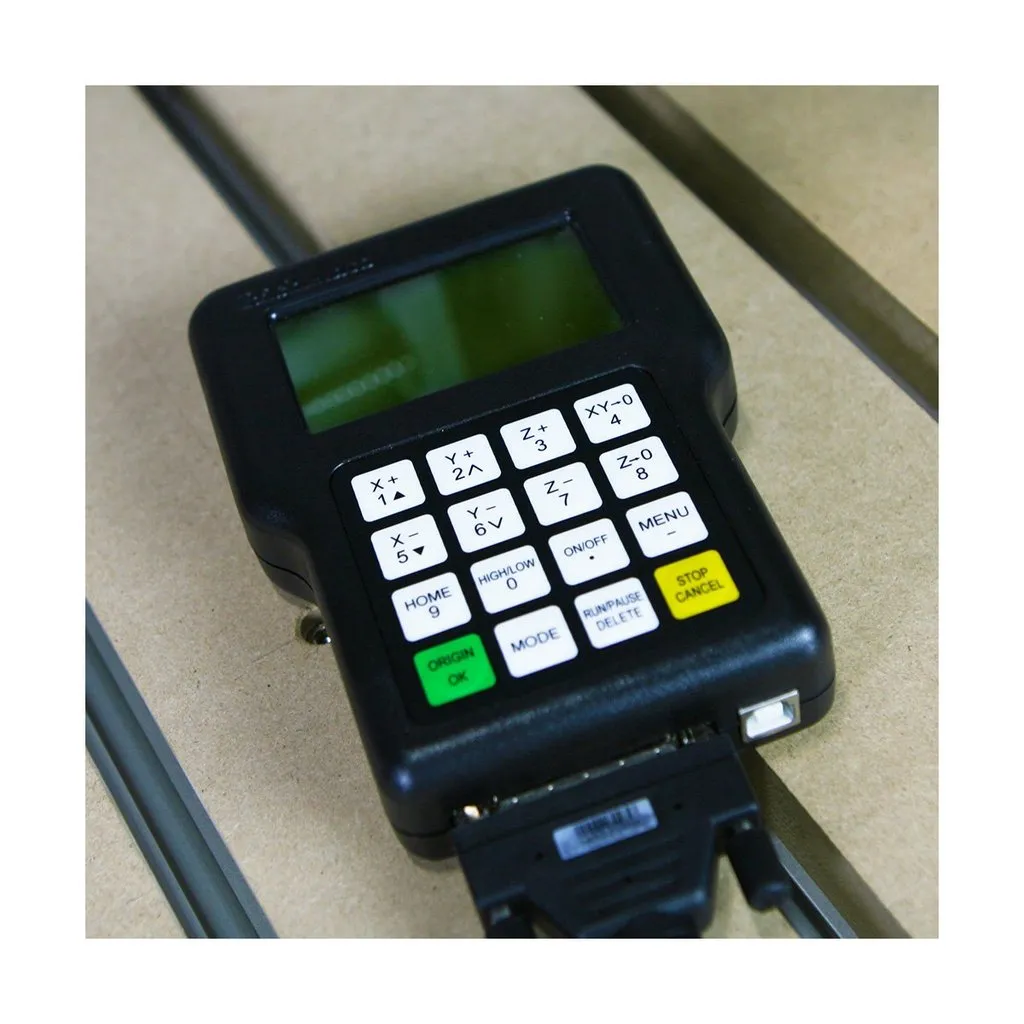

Controller Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.

Axiom AR6Pro V5 AutoRoute 24" x 36" CNC Router

  • AR6Pro V5 CNC
  • AR6Pro V5 CNC w/ Stand
  • AR6Pro V5 CNC w/ VCarve Pro
  • AR6Pro V5 CNC w/ Stand & Tool Box
  • AR6Pro V5 CNC w/ Stand / Tool Box / VCarve Pro
